The Cloud MPA Series is world-class; premium integrated Mixer Amplifier which provides a complete audio solution for Houses of Worship, retail outlets, hotels, licensed premises and other spaces where music, announcements and/or flexible paging are required. It combines the functions of a two-channel microphone mixer with full paging facilities, a six-input music source selector and a mono power amplifier in a single compact 1U unit.
The acoustic performance and best in class reliability makes this latest Cloud product another outstanding example of British design engineering by the worlds best manufacturer of BGM Electronics.
Super compact design with very low power consumption
Six (unbalanced) stereo line inputs with individual sensitivity adjustment
Two balanced mic inputs 12 V phantom power available on either or both
Separate HF/LF EQ adjustments for mic and music source
Paging control on Mic 1 input via short-to-ground access connection
Mic 1 configurable as high-voltage input for paging from existing 70/100 V-line system
Selectable VOX mic-over-music priority on all mic Inputs
Automatic Mic 1-over-Mic 2 priority in Page mode
Selectable LINE 6 priority with choice of release times
Selectable pre-announcement chime
Music Mute
Facility Port supports BT-1 Bluetooth and/or LM-2 Active Input Plates
Compatible with standard Cloud remotes RL-1 &RSL-6 Series
Power amplifier protection circuitry & input limiter
Transformerless output stage 70/100 V-line systems directly, or low impedance loudspeakers (4/8 ohms)
Aux output from pre-amp (balanced, line level)
Automatic power-down function (user-selectable)
ENERGY STAR Certification applied for
Convection cooled (MPA120MK2); forced-air cooling with variable speed control (MPA240MK2)
1U 19 rack mounting unit
| Manuals | MPA_MK2_Manual_EN_v1.3.pdf | Open |
| Datasheet | MPA120_240MK2_Series_Datasheet_EN_v1.0.pdf | Open |
| Jumper Settings | MPA120MK2 & MPA240MK2 JumperSettings (EN).pdf | Open |

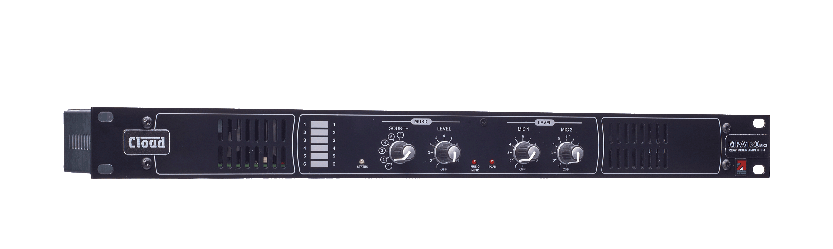

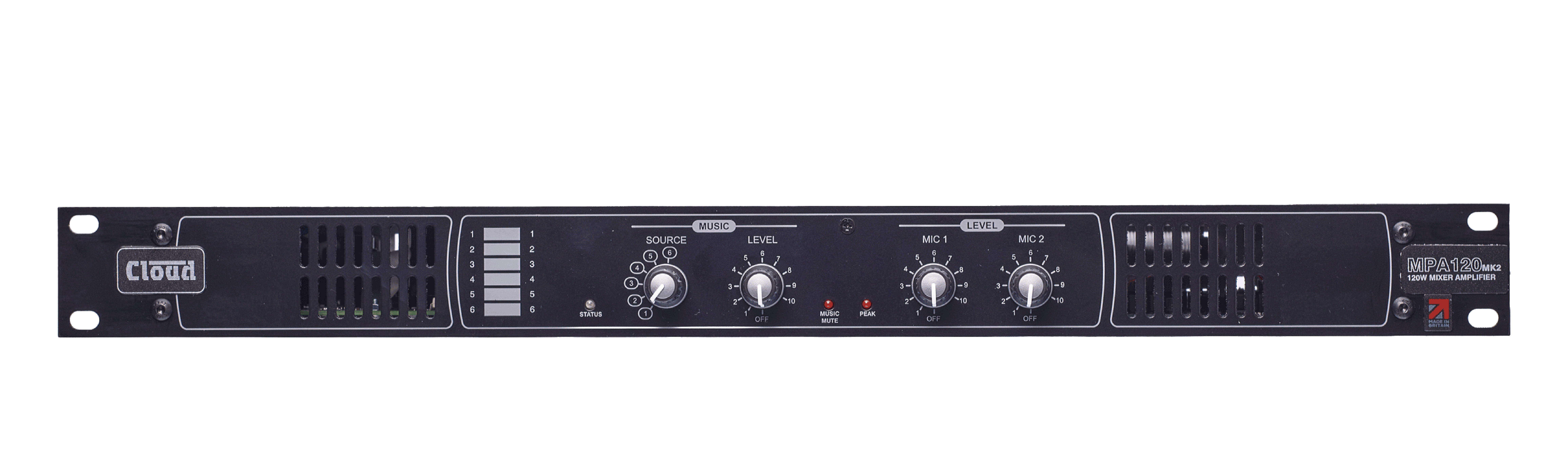

| Images | Image MPA120MK2_Front .jpg | Open |

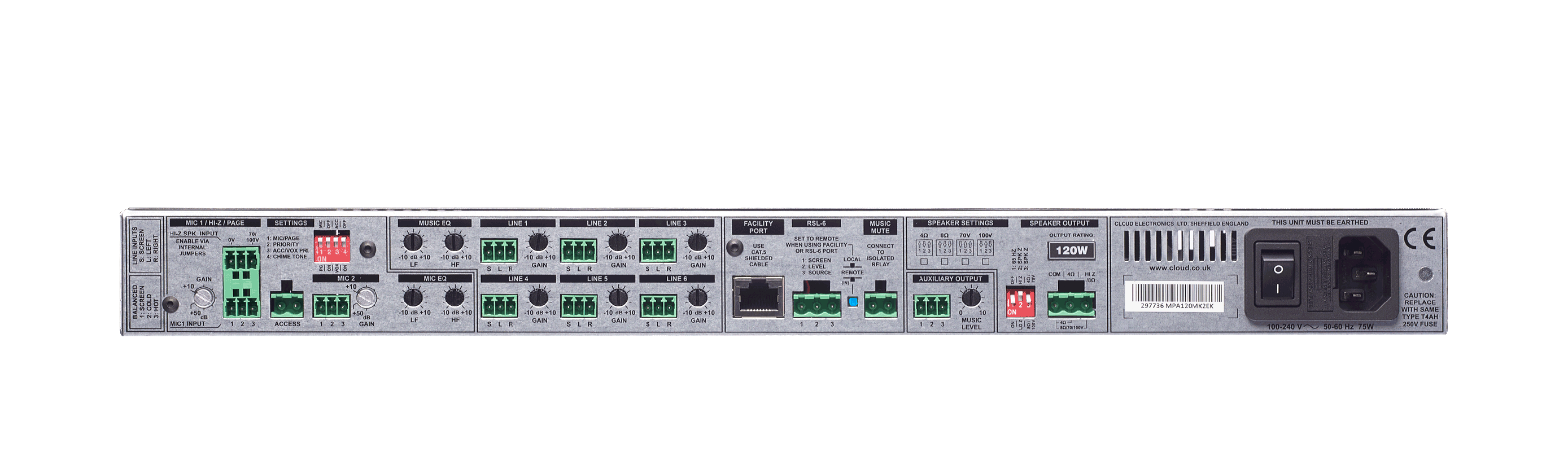

| Images | Image MPA120MK2_Rear .jpg | Open |
| Images | Image MPA120MK2_Side .jpg | Open |
| Images | MPA120MK2_Angle_Web Image_V3.0.jpg | Open |
| Technical Notes | Tech Note_TN-027_MPA120MK2-MPA240MK2 AUX Output Structure.pdf | Open |
| Technical Notes | Tech Note_TN-032_Phoenix_Wiring_Examples.pdf | Open |
| General | MPA120-240MK2 CB Test Cert.pdf | Open |
| General | MPA120-240MK2 EMC Cert_G5679TR2.pdf | Open |
| BT-1AFB/W (BT-1AFB & BT-1AFW) | Open |
| BT-1FB/W (BT-1FB & BT-1FW) | Open |
| BT-2FB/W (BT-2FB & BT-2FW) | Open |
| L-1B/W - Remote Volume Level Control Plate (L-1B & L-1W) | Open |
| L-1DB/W - USA Line Level Active Input Plate (Decora) (L-1DB & L-1DW) | Open |
| LM-2AB/W USA Line/Mic/Remote Active Input Plate (LM-2AB & LM-2AW) | Open |
| LM-2B/W - Line/Mic/Remote Active Input Plate (LM-2B & LM-2W) | Open |
| LM-2DB/W DE/NL Line/Mic/Remote Active Input Plate (LM-2DB & LM-2DW) | Open |
| M-1B/W - Mic Level Active Input Plate (M-1B & M-1W) | Open |
| M-1DB/W - USE Mic Level Active Input Plate (Decore) (M-1DB & M-1DW) | Open |
| RL-1AB/W - USA Remote Volume Level Control (RL-1AB & RL-1AW) | Open |
| RL-1B/W - Remote Volume Level Control Plate (RL-1B & RL-1W) | Open |
| RSL-6AB/W - USA Remote Source/Volume Level Plate (RSL-6AB & RSL-6AW) | Open |
| RSL-6B/W - Remote Source/Volume Level Plate (RSL-6B & RSL-6W) | Open |
